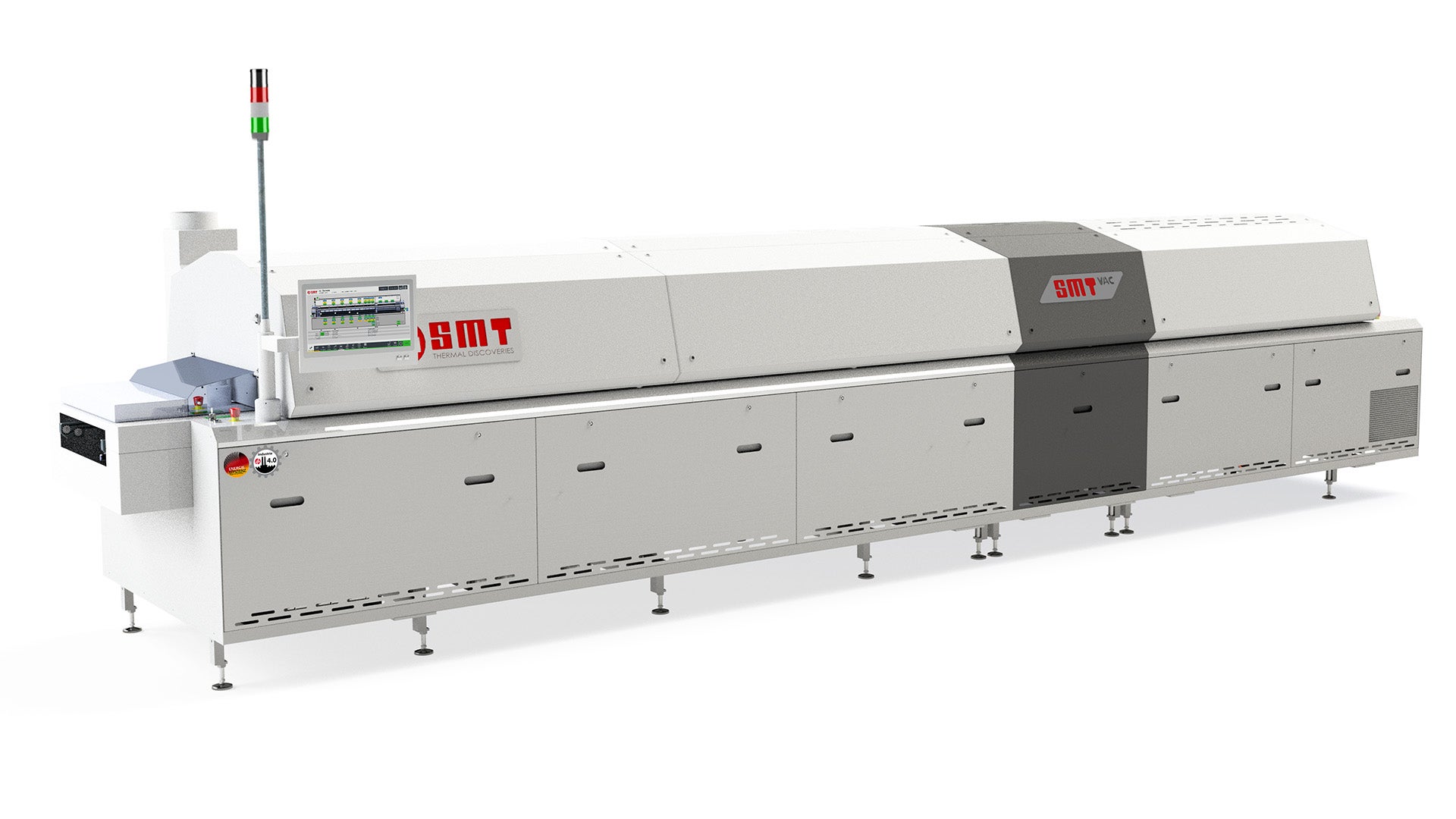

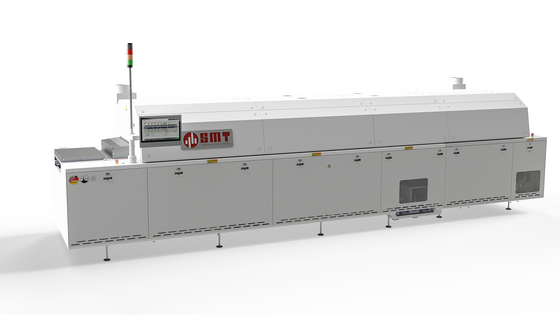

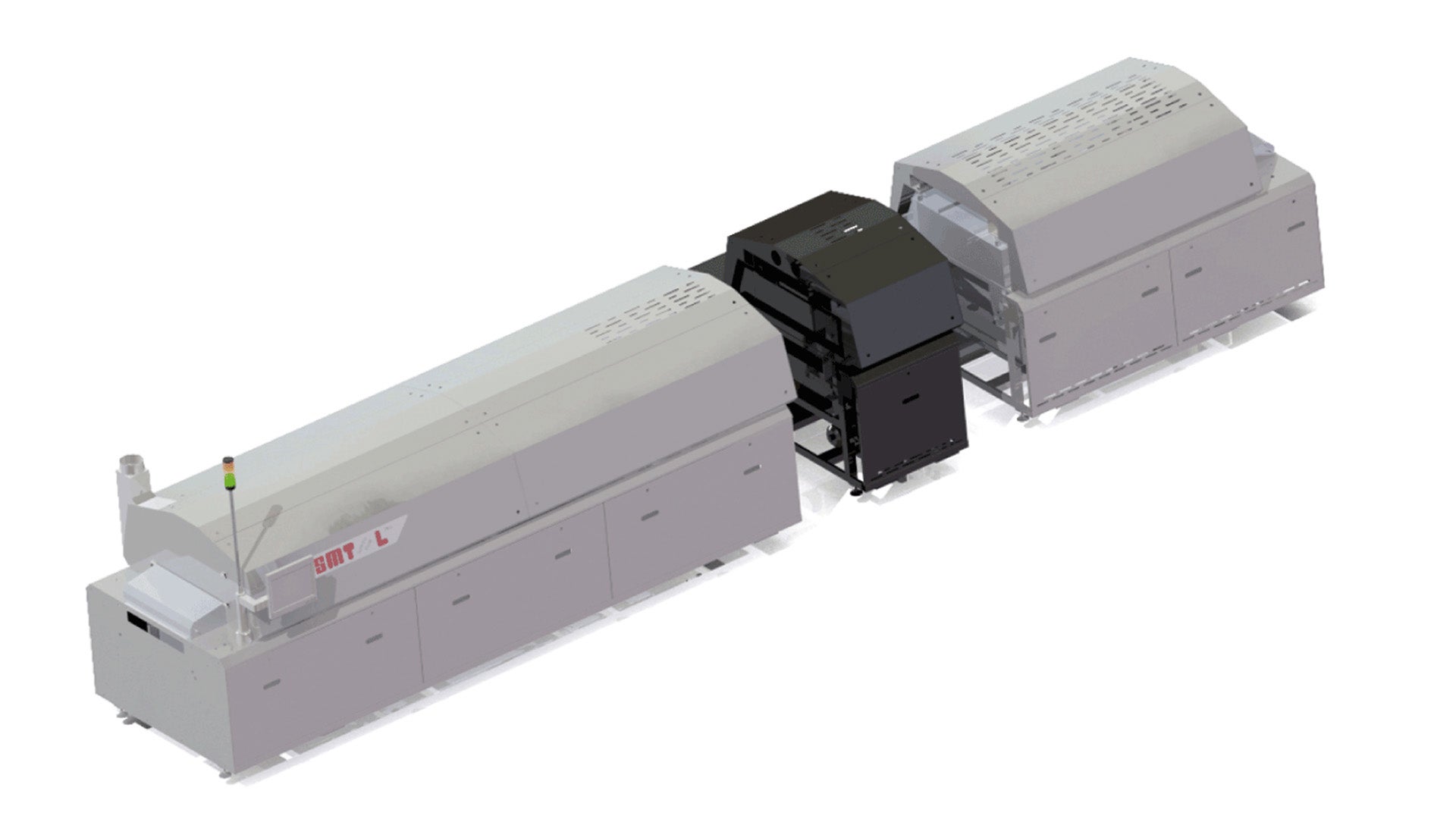

Vacuum V290
Variants

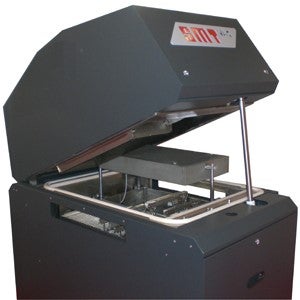

The V290 is a system designed to improve the quality of solder joints. Voids are reduced in a vacuum chamber, significantly enhancing the solder quality of the finished product. Voids can be reduced by up to 99%, and the quality of the solder joints is optimized. The system handles double-sided PCBs and offers adjustable parameters such as evacuation time, vacuum hold time, ventilation time, and vacuum pressure. The vacuum chamber has only one sealing surface, making the process stable and reliable.
| Vacuum | 1 |
|---|---|
| Cycle time | 52 s |
| Speed | 0.80 m/min |

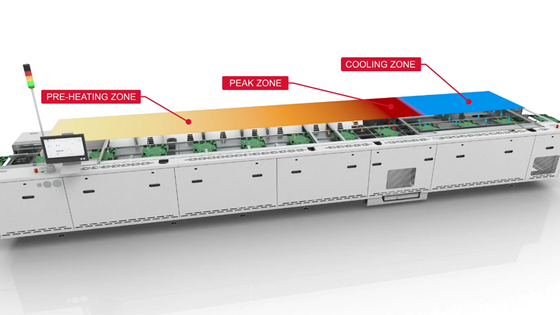

| Pre heat | 3 |
| Process lenght | 2900 mm |
| Peak zones | 3 |
| Cooling zones | 2 |
