MP Dry Cabinet I ST
Variants

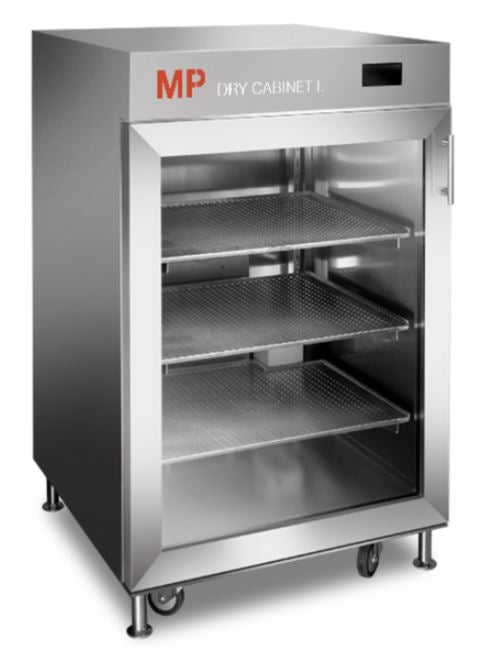

The MP DRY CABINET ST series offers outstanding performance for drying moisture-sensitive components and printed circuit boards. The low humidity levels of ≤0.5% RH are achieved thanks to the proprietary, dynamically engineered MPDRY5 drying unit. The insulating double metal sandwich construction ensures an accurate temperature of 70 °C with very low power consumption, supported by a built-in radial fan and heater.
| Series | Short-term storage |
|---|---|
| fielddefinition.productarea.model.name | CABINET1ST |
| fielddefinition.productarea.esdvolumestring.name | 260 liter |
| External dimensions | 700x1070x690 mm |
| Internal dimemsions | 640x800x520 mm |
| RH | Precision sensor, accuracy +/- 0.8% RH, +/- 0.1K |
| Temperature | Temperature up to 70°C (option) can be reached to speed up drying process. |
| Includes | Full graphical touch screen display, ESD safe design, ESD color RAL7016, quipped with 4 pcs of ESD wheels, Number of shelves: 3 pcs, ESD safe, Acoustic alarm for open door, time defined by user, Internal memory and USB connector for report recording, time period defined by user, Recording of every door opening including duration, Password protection for process parameter setup, Alarm for drying function error |
